BL-300A-2M 12" Advanced Slide


$24.99

This new and improved BL-300A-2M slide adds key upgrades to our favorite slides, including:
  • Newly designed end stops which mitigate the binding issues caused from high speed ramming.

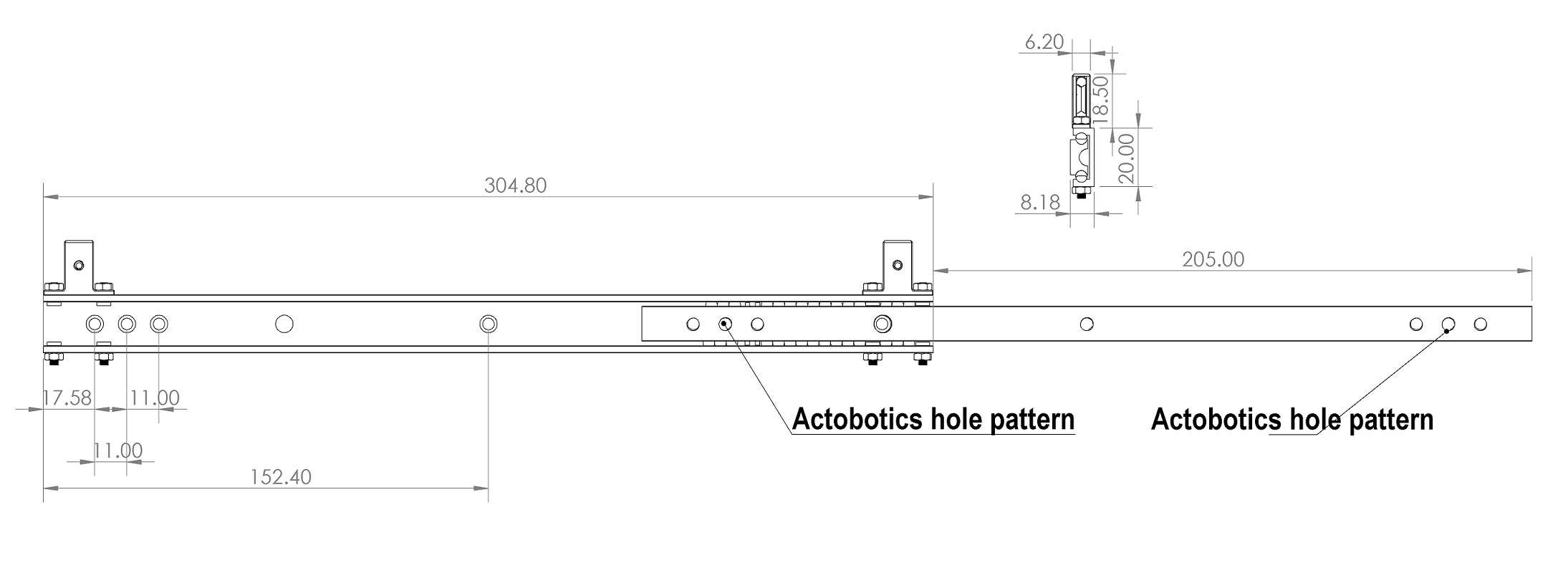

  • The adjusted mounting hole pattern matches with Actobotics U-channel and Patterned Plates.

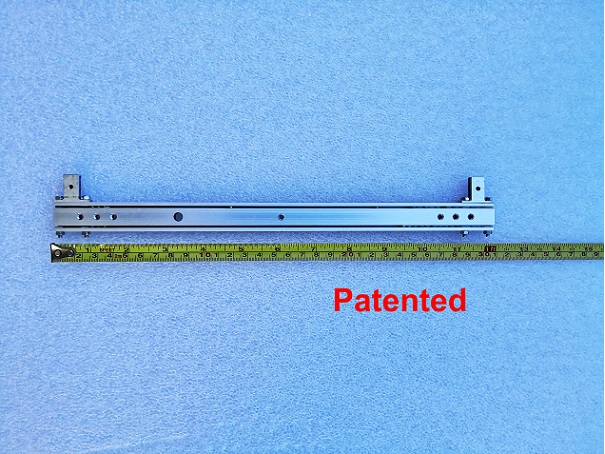

This slide also maintains the same beloved features found in the previous version BL-300-2M. This 12in (304.8mm) long aluminum drawer slide is innovativly designed. It provides these unique features:
  • can stack directly on top of each other without extra spacers; this will make slide-stacks stronger, smaller, and increasingly more stable;
  • can mount up to 4 BWTLink specially designed pulley modules easily;
  • can use pulley module mounting sites to attach user-customized module(s)/part(s);
  • equipped with 3 sets of ball bearings that help prevent slide from wobbling;
  • any singular slide can be dismounted directly from a stack of slides without need to uninstall all other slides (watch this video);

Weight: 94.20g
CAD STEP: BL-300A-2M



Quantity: Discontinued




Total extension length of number of stacked slides (BL-300A-2M) = 205mm X # of stacked slides
e.g. for 4 stacked 12" slides, the total extension = 205mm X 4 = 820mm.





BL-300 4-stack Slides used by FTC Team 18225 High Definition
