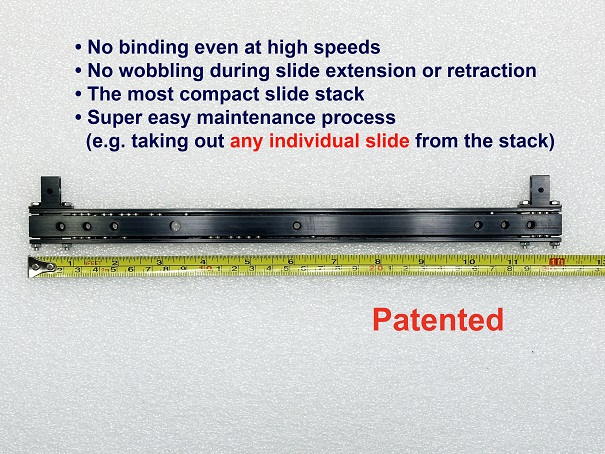

BL-300C-2M 12" Anodized Black Slide With 2 Pulley Modules
$25.99
The BL-300C-2M slide, part of our BWTLink slide family, comes with these features:
- Newly designed end stops (see the image gallery) which mitigate the binding issues caused from
high speed ramming.
- No wobbling during slide extension or retraction;

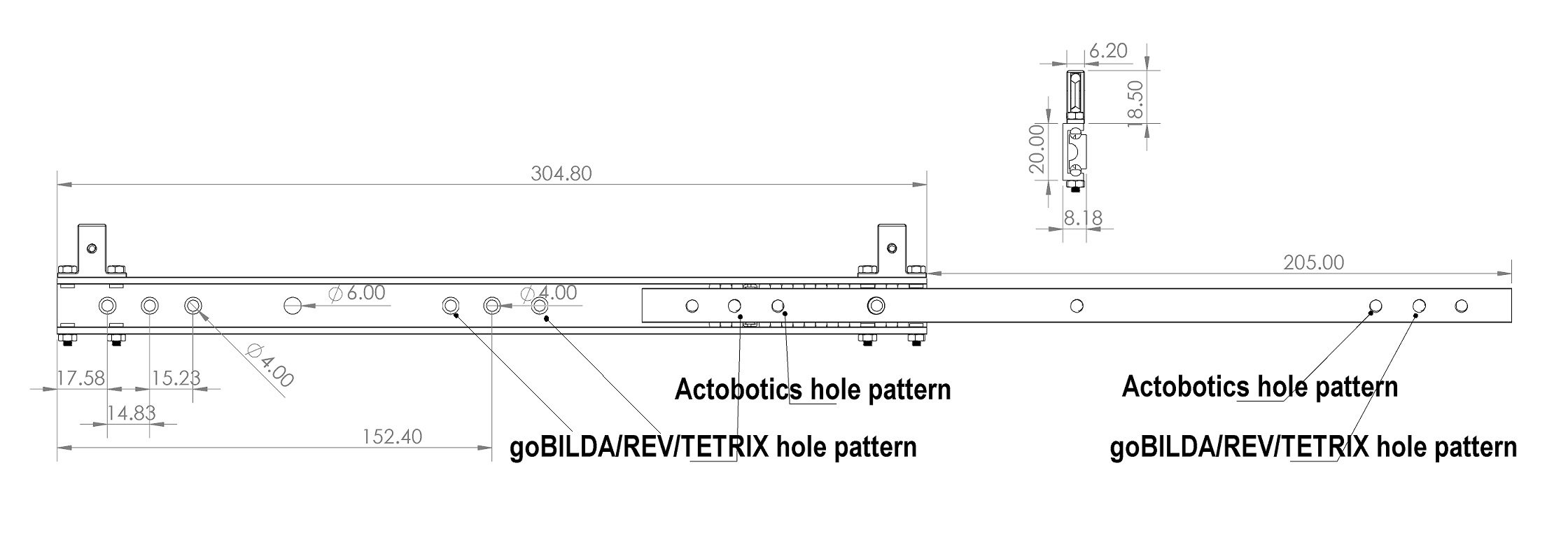

- Fits ALL build patterns of FTC (goBilda, REV, Tetrix, and Actobotics);
- BL-300C-2M and BL-350C-2M can stack on each other via newly added mounting holes on the outer slide;
- Can stack directly with M4-6-5.5 screws (6mm) on top of each other without extra spacers; this will make slide-stacks stronger, smaller, and increasingly more stable;
- Any singular slide can be dismounted directly from a stack of slides without need to uninstall all other slides
(watch this video);
- Can mount up to 4 BWTLink specially designed Pulley Modules BL-PM-01B easily;
- Can use pulley module mounting sites to attach user-customized module(s)/part(s);
- Equipped with 3 sets of ball bearings that help prevent slide from wobbling between open and close;
BL-300C-2M Included: 2 BL-PM-01B Anodized Black Slide Pulley Modules
Weight: 101.0g (with 2 Pulley Modules), 95g (no Pulley Module)
CAD STEP: BL-300C-2M, 3-stacked slides with Continuous Rigging Wiring demo CAD, 3-stacked slides with Cascade Rigging Wiring demo CAD, 3-stacked slides demo2 CAD
Quick Instruction: Stack and Rig Continuously 1:1 Extension/Retraction Pulley Ratio Cascade Rigging
Make sure to order M4-6-5.5 (length 6mm)
screws for stacking slides directly. More BL-300C-2M 12" will be available late Nov 29th, 2024. Sorry for your inconvenience.
Options:
Quantity:
|
Total extension length of number of stacked slides (BL-300C-2M) = 205mm X # of stacked slides
e.g. for 4 stacked 12" slides, the total extension = 205mm X 4 = 820mm.
BL-300 4-stack Slides used by FTC Team 18225 High Definition
